Magnetic Gate Locks: Enhancing the Security of Your Gate System

In today's security-conscious world, ensuring the safety of your property is paramount. Whether you are protecting a residential home, a commercial property, or an industrial site, the strength and security of your gate system play a crucial role. One of the most effective ways to enhance gate security is by incorporating a magnetic gate lock, commonly known as a maglock. In this blog, we'll delve into the workings of magnetic gate locks, their uses, types, efficiency, and the specific benefits they bring to swing gates.

What is a Magnetic Gate Lock?

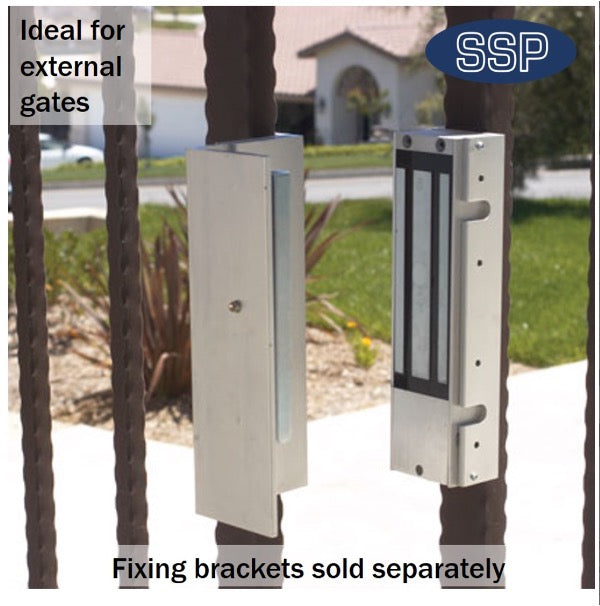

A magnetic gate lock, or maglock, is a locking device that uses the principles of electromagnetism to secure a gate. When electrical power is supplied to the lock, it generates a magnetic field that holds the gate firmly in place. This type of lock is typically engaged by power sent from your gate control board when the gate is closed. The lock remains engaged until the gate operator receives an open command, such as from a remote control or a keypad entry.

How Do Magnetic Gate Locks Work?

The operation of a magnetic gate lock is straightforward yet highly effective. Here's how it works:

Power Supply: When the gate is closed, the control board of the gate system sends an electrical current to the magnetic lock. This current energizes the electromagnet within the lock.
Magnetic Force: The energized electromagnet creates a powerful magnetic field that attracts and holds a metal plate, usually attached to the gate itself, with immense force. This magnetic force is what keeps the gate securely locked.
Unlocking: The lock remains engaged until the gate receives an open command. This command can be triggered by various inputs, such as a remote control, a keypad, or even a smartphone app. Once the command is received, the power supply to the magnetic lock is cut off, the magnetic field dissipates, and the gate can be opened. It all happens in seconds.

Uses of Magnetic Gate Locks

Magnetic gate locks are versatile and can be used in various settings, including:

Residential Properties: For homeowners who want to ensure their gates are not easily bypassed, magnetic locks offer an added layer of security.
Commercial Properties: Businesses often use maglocks to secure parking lots, delivery areas, and other sensitive zones.
Industrial Sites: Industrial facilities with high-value assets or hazardous materials benefit greatly from the enhanced security provided by maglocks.

Types of Magnetic Gate Locks

Magnetic gate locks come in several types, each designed to meet different security needs:

Surface-Mounted Magnetic Locks: These locks are mounted on the surface of the gate and the frame. They are easier to install and are suitable for gates that do not have a specific place for lock installation.
Mortise Magnetic Locks: These are embedded within the gate frame, offering a more discreet and secure installation. Mortise locks are ideal for gates where aesthetics and security are both important.
Fail-Safe Magnetic Locks: These locks remain locked when power is supplied and unlock when power is cut off. They are typically used in situations where it is critical that the gate can be opened during a power failure for safety reasons.
Fail-Secure Magnetic Locks: These locks remain locked even when power is cut off, ensuring the gate remains secure during power outages. This type is preferred in high-security areas where maintaining a lock during a power outage is crucial.

Efficiency and Security Benefits

Magnetic gate locks are known for their efficiency and the robust security they provide. Here’s why:

Strong Holding Force: High-powered magnetic locks can exert a holding force of up to 600kg or even more, making it nearly impossible for anyone to push the gate open manually. The standard for swing gates is around 350-450kgs of force. You can install a small magnetic lock to a small security door and these are about 250kgs, and much more reliable that a standard lock..
No Mechanical Parts: Unlike traditional locks with mechanical components, maglocks have no moving parts, reducing the risk of wear and tear over time. This also makes them highly reliable and low maintenance.
Quick Response: Magnetic locks engage and disengage almost instantaneously, providing seamless operation in automated gate systems.

Swing Gates vs. Slide Gates: The Role of Magnetic Locks

Swing gates, while popular for their aesthetic appeal and ease of use, are not inherently as secure as slide gates. Without additional security measures, a determined individual might be able to push a swing gate open, especially if the gate is long or heavy. This is where magnetic locks come into play.

By adding a magnetic lock to a swing gate, you can significantly enhance its security. The lock prevents unauthorized individuals from pushing the gate open, ensuring that the gate remains securely closed unless the proper access command is given. They can be installed on double gates so they lock the two gates together, or if it is a single gate, it will lock the gate in the closed position against the gate post. In contrast, slide gates are generally more difficult to breach due to their horizontal movement, but a magnetic lock can further reinforce their security.

Important Considerations

It's essential to note that magnetic gate locks are only suitable for electric gate systems that are mains powered ......and have a magnetic connection port on the control board. This requirement ensures that the lock receives a consistent power supply, which is crucial for maintaining the magnetic field necessary for security.

High-Powered Magnetic Gate Locks

For those seeking the highest level of security, high-powered magnetic gate locks are an excellent choice. These locks are designed to provide a holding force that can withstand significant pressure, ensuring that even the most determined intruder cannot force the gate open. High-powered maglocks are particularly well-suited for commercial and industrial applications where security is of utmost importance. I always tell my customers to install a good lock so the gate cannot be forced and parts broken.

Conclusion

Magnetic gate locks are a vital component of a comprehensive security system, especially for swing gates that might otherwise be vulnerable to forced entry. Their efficiency, reliability, and powerful holding force make them an excellent investment for anyone looking to enhance the security of their property. Whether for residential, commercial, or industrial use, a magnetic gate lock ensures that your gate remains closed to unwanted visitors, providing peace of mind and protection for your assets. regards Graeme
