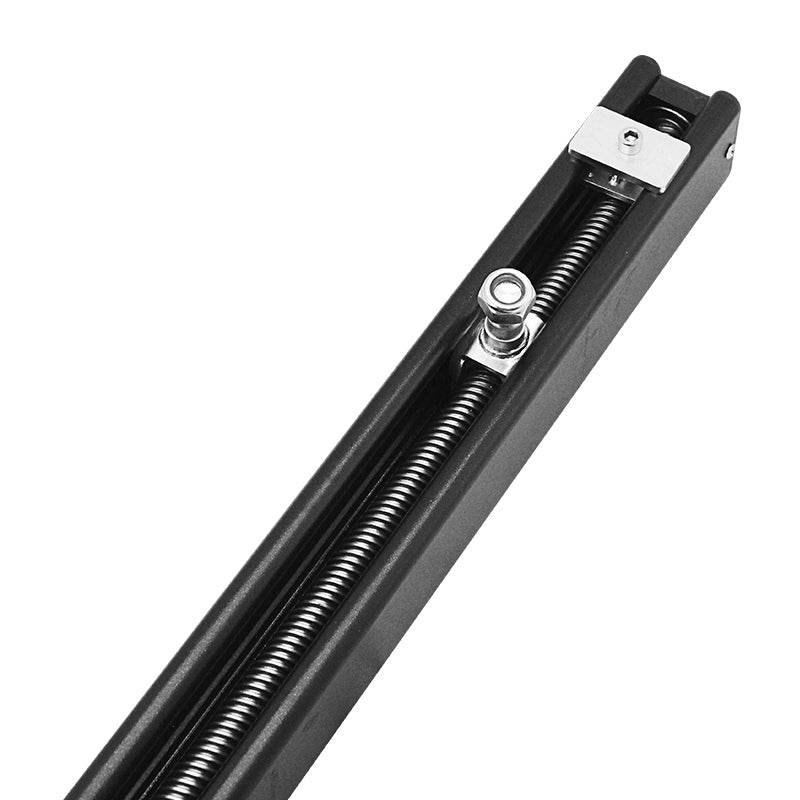

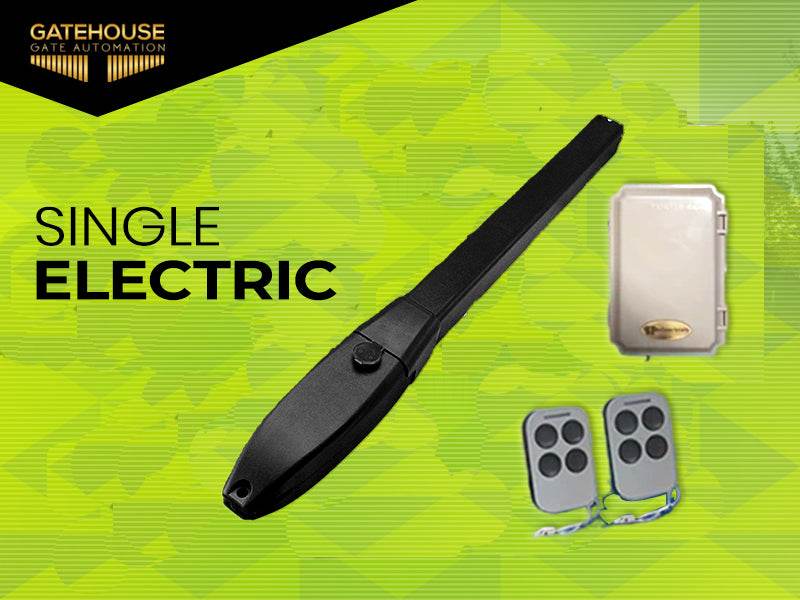

Gatehouse Heavy Duty Single Electric With Adjustable End Stops
Description

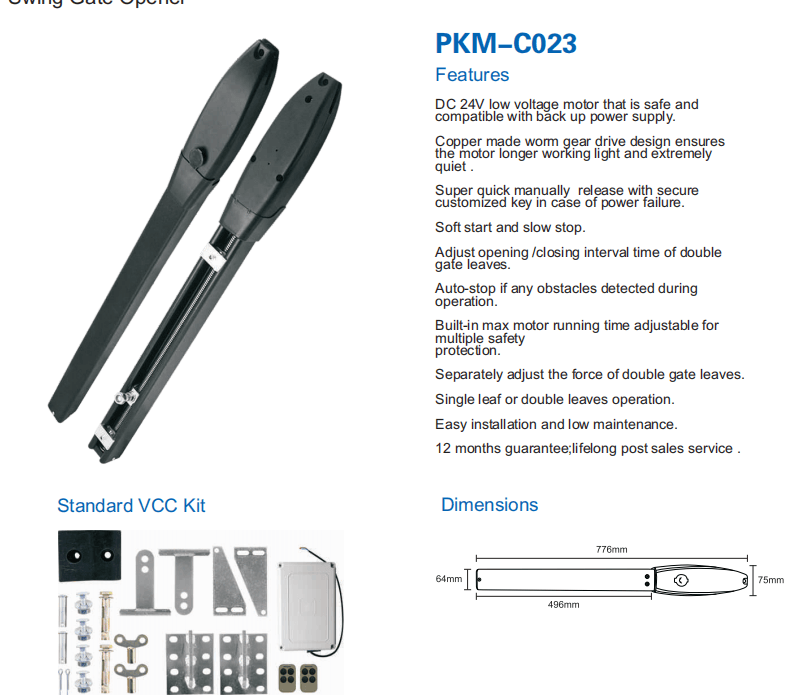

The GateHouse heavy duty Single electric gate kit is the answer when looking for high quality electric driveway gates. The system has been tested over 48,000 cycles, so you know you're getting great durability. The kit contains all the instructions you need to self-install, and the hardware requires little ongoing maintenance. We program the control boards before we deliver and we program all the remotes or any wireless accessories so all you need to do is connect the power and the motor wires. Easy done.. It includes a detailed manual so you can change the soft start time, level of stall force, High speed running time, auto close time if required, interval time between gates, Adjustable power for gate or driveway LED's, Lock time, Photo cell.
There are voltage connections for an external receiver or a mobile phone GSM system.
Also two different connections for either electric or magnetic locks. Just a note here, you cannot use a magnetic lock on a solar system...
Your gates will NOT need a physical stop on open and close for the auto brake system to work. This model has it built in..
This gate kit includes safety features such as Auto-stop in case anything gets in the way of operation, and soft-start and slow-stop for added safety.
Battery backup can be installed should mains power fail on an electric system. There is two backup battery systems available, standard acid batteries 12v 9Ah batteries x 2..There is a quick release key-operated system to get things moving manually. The copper worm gear ensures added durability and quiet operation. There is a 4 year warranty on all our swing motors if installed correctly..
In the box:
- 1 x Heavy duty DC motor that are pre-wired with motor cables
- 1 x Override spanners
- 1 x control panel
- 2 x Remote controls
- 1 x Post mounting bracket
- 1 x Gate mounting bracket
- 1 x Rubber Gate Stop
- 1 x Instruction manual
- Wireless keypad & exit button available
- Extra remotes $30
- Great backup service
Who Installs The Gate Kit?
You! Our kits are fully DIY approved, 99% our our customers install their gates themselves. If you run into any issues I'm only a phone call away to assist.
Safety Features
✔ Adjustable Power For Gate Or Driveway LED's
✔ Soft Start & Slow Function
✔ Auto-Stop If Any Obstacles Dected During Operation
✔ Copper Worm Gear For Durability & Quiet Operation
✔ Manual Release With Secure Customized Key Function
Kit Includes
✔ 2 x Heavy duty DC motor that are pre-wired with motor cables
✔ 2 x Override spanners
✔ 1 x Control panel
✔ 2 x Remote controls
✔ 2 x Post mounting bracket
✔ 2 x Gate mounting bracket
✔ 1 x 30watt solar panel
✔ 2 x 12v 9Ah 20Hr rated batteries
✔ 2 x Rubber Gate Stop
✔ 1 x Instruction manual
✔ Wireless keypad & exit button available
✔ Extra remotes $30
✔ Great backup service
Place your order before 2pm and have it shipped same day
Included in this kit
FAQ
We understand that you may have questions about our product, so we have compiled a list of the most commonly asked questions to help you find the answers you need.
How easy is the Swing Gate Kit to install?
The kit is incredibly easy to install and includes detailed assembly instructions with pictures to help you.
How much weight can the Swing Gate Kit support?
It can support gates up to 450KG pounds in weight. Conditions apply depending on gate type & material*
Is the Swing Gate Kit weatherproof?
Check with Graeme
What is the maximum opening size of the Swing Gate Kit?
The maximum opening size is up to 4.5 meters Check with Graeme
When will my order be shipped?
Orders before 2 pm will be shipped the same day, and orders placed after 2 pm will be shipped the next day Australia-wide
Do you ship worldwide?
Yes, we do! Overseas deliveries can take anywhere from 7-16 days. Delivery details will be provided in your confirmation email.
Our Gates In Action
The Gatehouse Difference
Gatehouse Automatic Swing Gate Opener kits combine top-quality components to provide highly durable and reliable gate automation systems that can handle wide driveways and heavy loads. These systems are available in Solar or Electric models, with Battery Backup included, and are designed for entrances with or without mains power.
Backed By 4 Year Warranty
When you choose Gatehouse, you're not just getting a top-quality gate system for your home, you're getting peace of mind. Our kits are backed by a 4-year warranty.
Unmatched Customer Service
At Gatehouse, we pride ourselves on providing our customers with the highest level of customer service. Graeme is always on hand to answer any question you may have - 08 95711936
Maximum Safety & Security
Upgrade the security of your property gates with ease. Safety and security are our top priorities. All of our gate kits are designed with the latest security measures to ensure your home or business is always safe and secure.
Innovative Gate Solutions
We understand the important of staying ahead of the curve. That's why we're constantly innovating and developing new solutions to ensure our gate kits are always on the cutting edge of technology. No matter what your needs are, we have the perfect solution for you.
