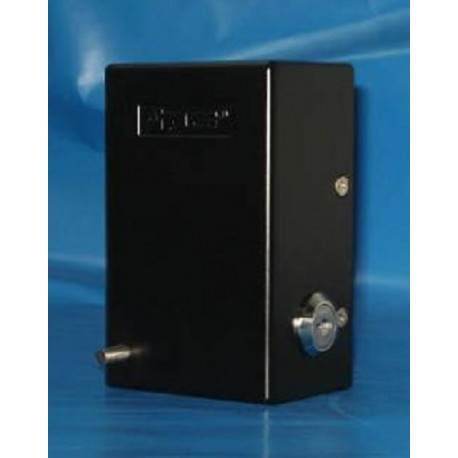

Ahouse swing gate Drop Down Gate Lock

  • Sale
  • Regular price $145.00
Tax included. Shipping calculated at checkout.

This is a universal drop down lock suitable for any 24v swing gate system.



  • Rated Voltage: 24VDC
  • Model: DS218
  • Dimensions: 60mm(d) x 70mm(w) x 118mm(h)
  • Materials: Aluminium die cast alloy (Lock Stopper) Steel casing
  • Surface: Powdercoated
  • Bolt pin diameter: 16mm
  • Working range: 15mm
  • Pulse to open lock: 3 seconds
  • Operating current: 2.5A

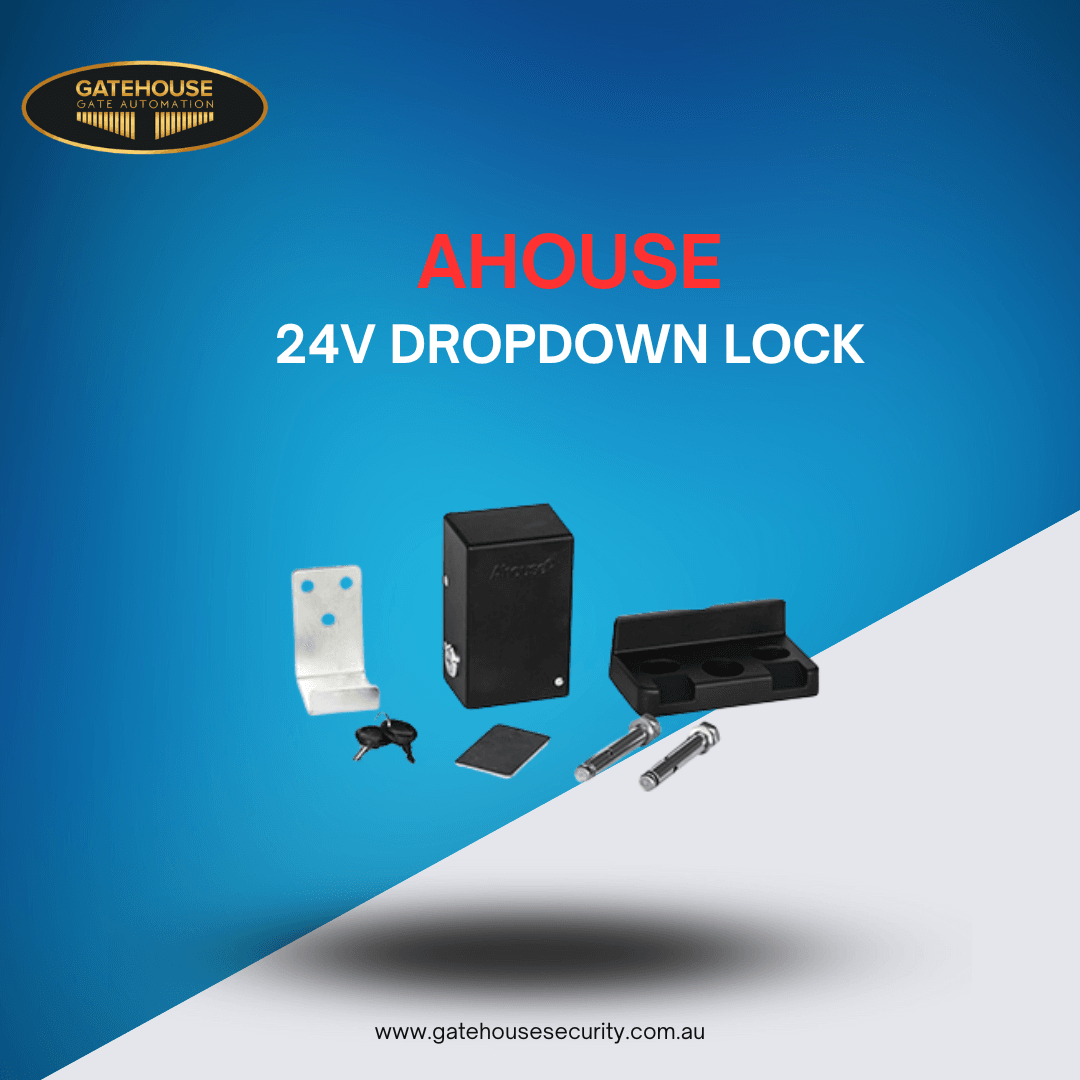

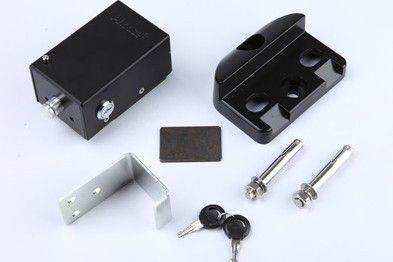

In the box:

  • 1 x Base plate included for weld or screw fixing to gate
  • Dynabolts included for gate stop
