12v Heavy Duty Continuous Use Water Pump 37L/min Hot/Cold
Description
These pumps have been designed to replace and back up the current mechanical pump driven by your engine belt.

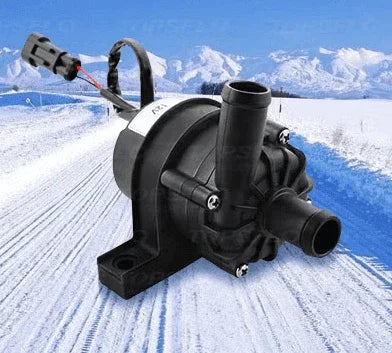

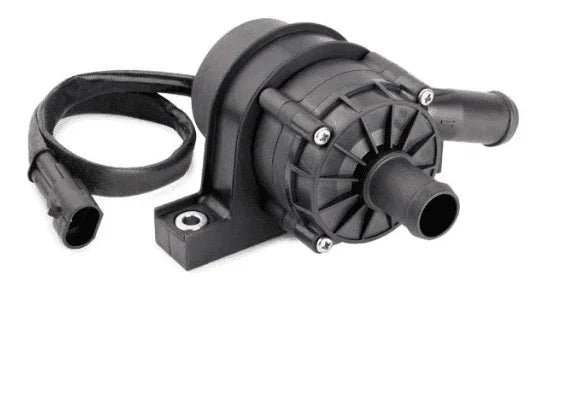

Brushless Booster Pump
Technical specifications:
- Motor : 12V
- Operating power : 6V DC to 18V DC
- Maximum amperage : 4.5A

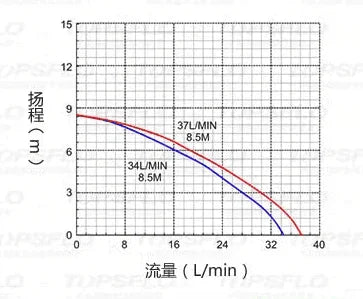

- Maximum flow : 37L/min
- Maximum flow pressure : 0.85 Bar
- Operating temperature : From - 40°C à 120°C
- Type : Recirculating centrifugal
- Weight : 570g
- Material : Nylon
- Burst pressure : 2.5 Bar
- Diameter: 19 mm hoses
- IP : IP67
They are made from extremely light, anti-corrosion plastic.
Continuous use, Vibration proof,

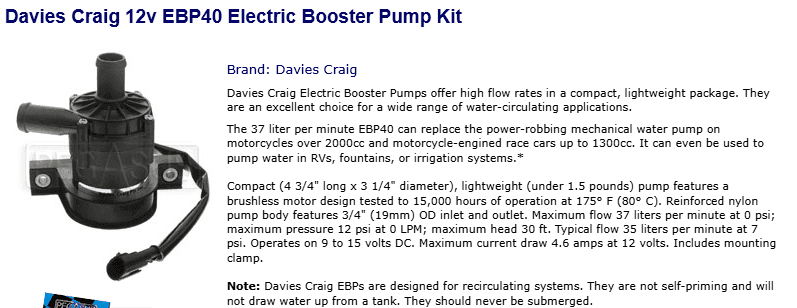

Davies Craig Electric Booster Pumps offer high flow rates in a compact, lightweight package. They are an excellent choice for a wide range of water-circulating applications.
The 37 liter per minute EBP40 can replace the power-robbing mechanical water pump on motorcycles over 2000cc and motorcycle-engined race cars up to 1300cc. It can even be used to pump water in RVs, fountains, or irrigation systems.*
Compact (4 3/4" long x 3 1/4" diameter), lightweight (under 1.5 pounds) pump features a brushless motor design tested to 15,000 hours of operation at 175° F (80° C). Reinforced nylon pump body features 3/4" (19mm) OD inlet and outlet. Maximum flow 37 liters per minute at 0 psi; maximum pressure 12 psi at 0 LPM; maximum head 30 ft. Typical flow 35 liters per minute at 7 psi. Operates on 9 to 15 volts DC. Maximum current draw 4.6 amps at 12 volts. Includes mounting clamp.
Note: Davies Craig EBPs are designed for recirculating systems. They are not self-priming and will not draw water up from a tank. They should never be submerged.
37L/min
9m head,
Suit hot or cold
Used for Auto water circulation, Farm spray units, etc
Car engine cooling circulation
Car engine pre-heating Heating system (Car Auxiliary heaters & parking heaters)
Electric vehicles water circulation system
Normal Hot Water Circulation
Liquid Transfer
General Purpose Pumping
1. With 20mm Inlet/Outlet standard car connection and specialized water-proof connector, then the pumps can be quickly and efficiently integrated into vehicles.
2. TOPSFLO TA60 engine pre-heating & parking heater pumps provide the vehicles an efficient working environment even at extreme outdoor temperatures and in bad weather conditions.
3. Special design to meet car vibration working requirement, car power supplying way which occur peak voltage or unstable voltage.
Features:
·High efficiency ECM brushless DC motor with long lifetime.
·Heavy duty work, can sustain 24 hours continuous running.
·Durable permanent magnetic rotor & high density ceramic shaft.
·Advanced magnetic driving technology, static-seal without leakage forever.
·Anti-vibration pump rubber bracket designed for automotive vibration working condition.
·Highly adaptable circuit designed specially for unstable automotive voltage and peak voltage.
·Automotive water-proof connector.
·Applied liquid: pure water, antifreeze solution.
·Low or no maintenance.
·Low power consumption
