How to Set Up Your RT2024 GSM Gate Controller: A Step-by-Step Guide

Introduction

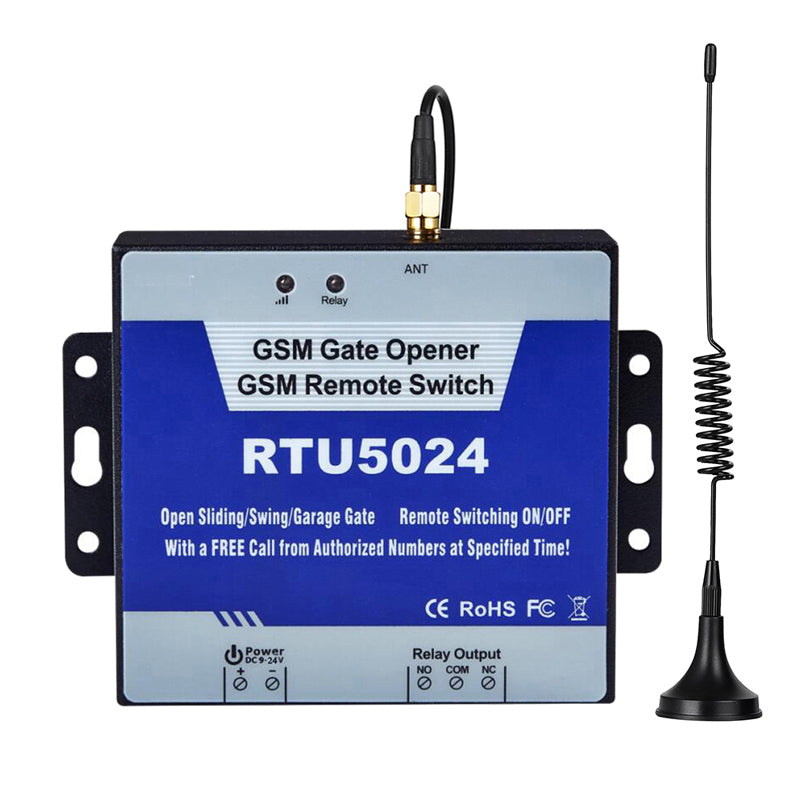

The RT2024 GSM gate controller is a reliable and convenient way to manage gate access using your phone. This guide will walk you through the setup process, ensuring your controller is ready to go.

---

Step 1: Gather Your Tools and Materials

Before you start, make sure you have the following:

• RT2024 GSM gate controller
• SIM card (unlocked and with SMS capability)
• Power supply (12V or 24V DC, depending on your setup)
• Basic tools (screwdriver, wire stripper, etc.)
• Mobile phone

---

Step 2: Prepare the SIM Card

1. Insert the SIM card into an unlocked phone.
2. Disable the PIN code (if applicable).
3. Load sufficient credit for SMS use (if prepaid).
4. Test the SIM by sending and receiving a message.

---

Step 3: Install the RT2024 GSM Gate Controller

1. Mount the RT2024 near your gate motor in a weatherproof location.
2. Connect the power supply to the controller.
3. Wire the controller to your gate motor according to the manual. Usually:
   • Connect the relay output terminals to the motor’s control board.
   • Ensure all connections are secure.

---

Step 4: Configure the Controller

1. Power up the RT2024.
2. Add an admin number:
   • Send an SMS to the device with the text #PWD123456#TEL+YOURADMINNUMBER#. Replace YOURADMINNUMBER with your phone number.
3. Set the relay pulse duration:
   • Send an SMS #PWD123456#RELAY01:1# to set the relay to activate for 1 second.
4. Add user numbers for gate access:
   • Use the SMS command format provided in the manual, such as #PWD123456#TEL+ADDITIONALNUMBER#.

---

Step 5: Test the Gate Controller

1. Call the SIM card number. If configured correctly, the gate should open or close.
2. Test with user numbers to confirm access.

---

Troubleshooting Tips

• No response from the device? Check the SIM card status and ensure the power supply is working.
• Gate not opening? Verify wiring and relay settings.
• Need to reset? Follow the factory reset steps in the manual.

---

Conclusion
The RT2024 GSM gate controller is a game-changer for automated gate systems, offering easy remote access and management. Follow these steps carefully, and you’ll enjoy a seamless setup experience.
